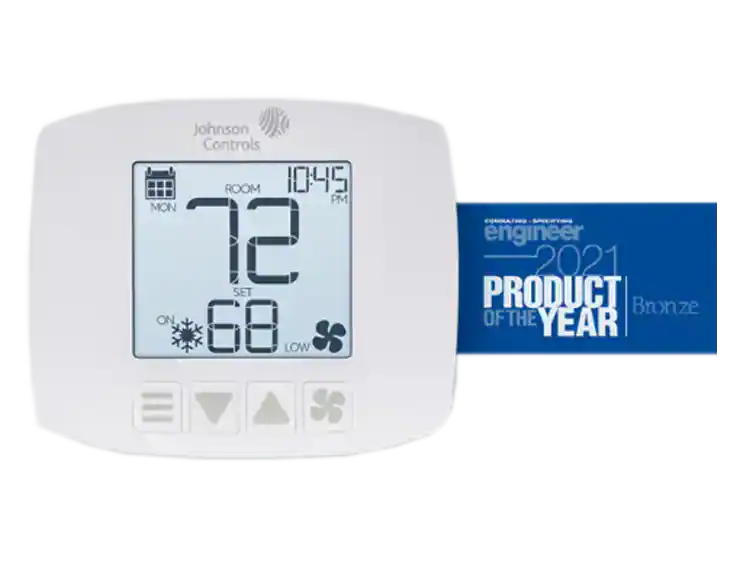

The T701DFN-4 Non-Programmable and T701DFP-4 Seven Day Programmable Fan Coil Thermostats provide simple-to-use control of two- or four-pipe fan coil units.

• Controls Most Fan Coil Unit Systems—Providing efficient asset management and flexibility.
• Non-Programmable (T701DFN-4) and Seven Day Programmable (T701DFP-4) Versions—Make operation as simple as you want it to be.
• Up to Three Programmable Occupied Periods Per Day (T701DFP-4 Only)—Reduce operating expenses by controlling the room based on occupant schedules.
• Dual Setpoint with Adjustable Deadband—Provides comfort without sacrificing efficiency.
• Manages 2- or 4-Pipe Systems—Enabling one thermostat to control all your fan coil unit needs.
• Auto-Changeover for 2-Pipe Systems with Pipe Sensor—Minimizes seasonal maintenance.
• Remote Sensor Ready—Supports outside temperature sensors or duct temperature sensors.
• Dry Contact Equipped—Supports occupancy sensors or central time clocks.
• Electric Heat Ready—Supports auxiliary or exclusive electric heating.

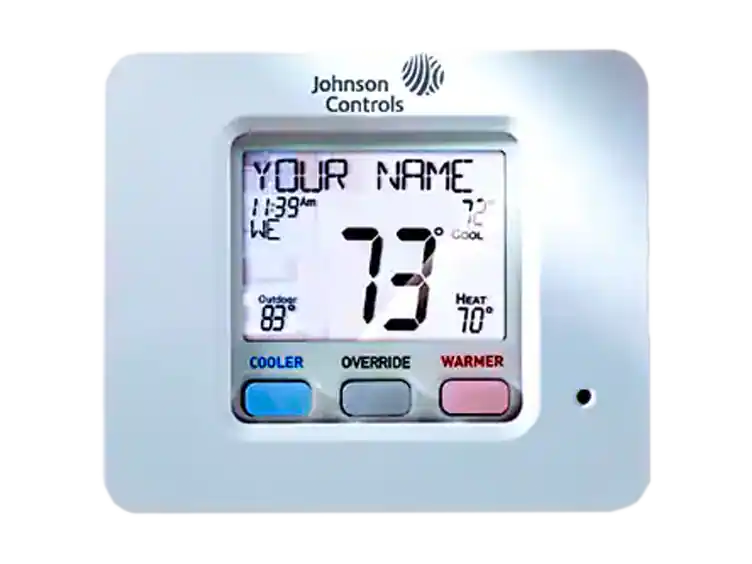

The T8490 digital room thermostat serves a variety of commercial and residential HVAC applications; including packaged and split systems, gas and electric forced air systems, heat pumps and radiant heat.

• Up to Four Heating and Two Cooling Stages - Saves time and effort by standardising operating procedures and minimizing inventory with this one flexible thermostat.
• Programmable (7-Day, 5/1/1, or 1-Day) Occupancy Schedule with up to Three Occupied Periods Each Day - Reduces operating expenses by controlling the room based on occupant schedules.
• Humidity Sensor - Enables the device to control humidification, dehumidification, and reheat equipment.
• Configurable Alerts - Send messages to the digital room thermostat when certain conditions occur, such as equipment runtime and service alerts for filters,
• UV lamps, and humidifiers.
• Keypad Lockout - Enforces setpoint energy policies by preventing tampering with the digital room thermostat settings in public spaces.
• Multilingual Display Options - Provides a user interface in English, French, or Spanish.
• Skyport Cloud Services (with Accessory Wi-Fi Module Sold Separately) - An accessory Wi-Fi module is available to plug into the T8490 thermostat to enable
• Skyport™ Cloud Services. This enables programming and configuration directly from the room thermostat or remotely from a mobile device or computer. This also allows for Automated Demand Response (ADR) signals from the local utility company. The T8490 complies with California Building Code, Title 24, Joint Appendix 5 (JA5) for Occupant Controlled Smart Thermostats (OCST).

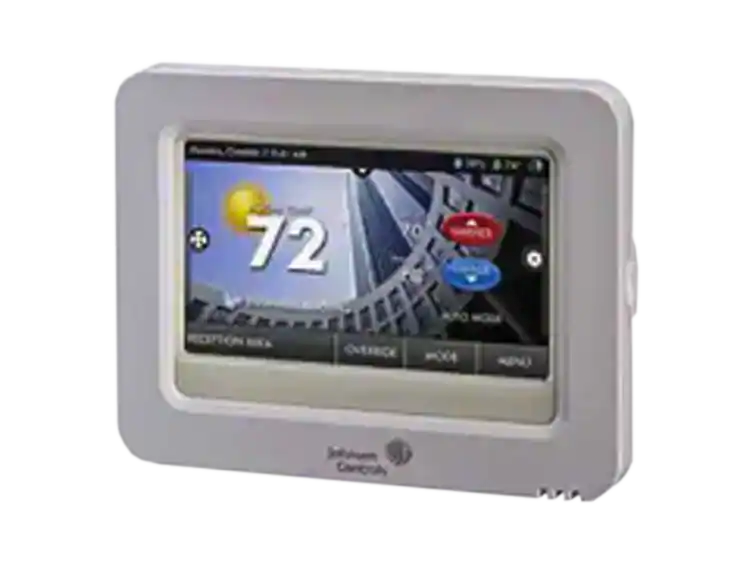

The T8000 and T9000 Series High-Resolution Colour Touch Screen Digital Room Thermostats are multi-functional devices that offer a simple-to-use colour touch screen user interface.

• Skyport Cloud Services Wi-Fi Accessory (ordered separately for T8000) - provides facility managers and end users with remote access to the digital room thermostat
• Programmable occupancy schedule - reduces operating expenses by controlling the room based on occupant schedules
• Local equipment runtime trending — provides easy access to energy usage information; shows how much energy was used to heat and/or cool over a 7-day period
• Password protection capability - enforces setpoint energy policies by preventing tampering with the digital room thermostat settings in public spaces
• Multi-lingual display options - provide a user interface in English, French, and Spanish
• SD memory card input - reduces configuration time by making inputting and exporting data between digital room thermostats quick and easy
• Configurable alerts - send messages to the digital room thermostat when certain conditions occur, such as when the room temperature exceeds a user-specified value.

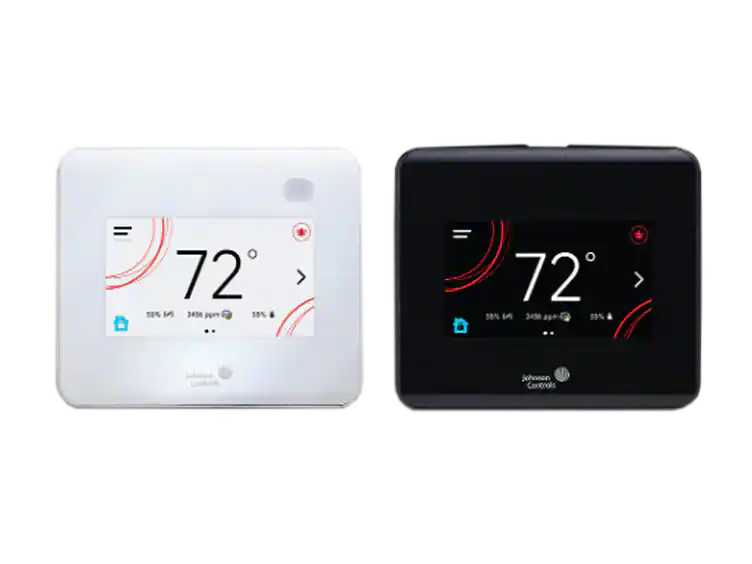

A full-colour, backlit touchscreen makes TEC3000 Series Smart Thermostat configuration and control easy—and that’s just the beginning.

Available in networked, wireless or standalone models, this all-new controller is ideal for multiple applications with both traditional and Smart Equipment.

• Building automation and controls systems, including Verasys®, Metasys® and Facility Explorer®
• Two- or four-pipe fan coils
• Rooftop units with or without economizers and heat pumps

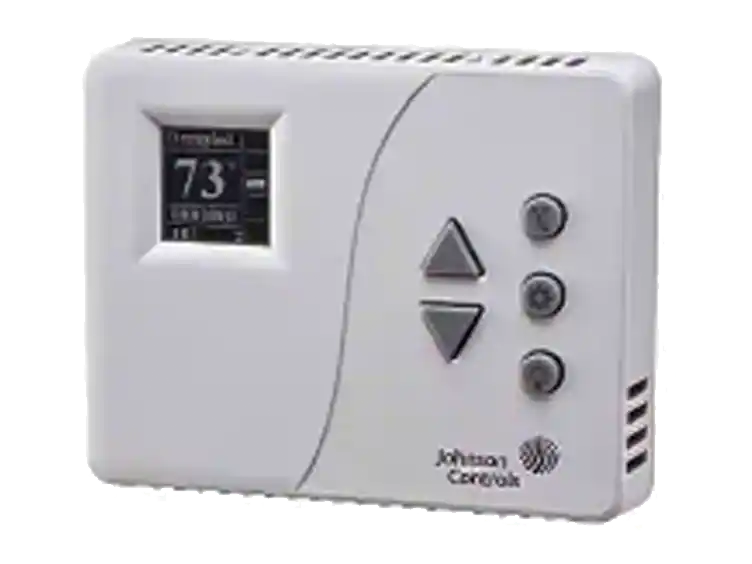

The WT-4000 Series Pneumatic-to-Direct Digital Control (DDC) Room Thermostats provide reliable zone comfort and enhanced energy economy via remote monitoring and temperature setpoint management.

• Pneumatic-to-DDC piezoelectric air valve - eliminates the need for mechanical calibration; provides longer, more dependable, and maintenance-free operation
• Wireless RF communications - provides real-time status for proper room thermostat operation; centrally automates the building temperature control system; reduces installation time and costs
• Stand-alone capability - allows the room thermostat to be configured in the field for stand-alone applications.
• Optional WT-ROUTER Router - enhances the wireless mesh network by extending the range of the network; provides multiple routes of communication with the WT-BAC-IP Gateway
• Easily applicable data types - allows transmission of the sensed temperature, setpoint temperature, occupancy status, and low battery conditions to the associated WT-ROUTER Router and WT-BAC-IP Gateway
• Programmable temperature control schedule - maximises energy savings without sacrificing occupancy comfort
• Two-pipe, direct acting/reverse acting (DA/RA) dual control action - allows replacement of a wide variety of existing pneumatic room thermostats
• Motion sensor input (WT-4002-MCM and WT-4002-MFM models) - maximizes up to 30% energy savings in high-energy usage environments; facilitates trending of floor space usage
• Liquid crystal display - provides an intuitive user experience, with real-time indication of control system and room conditions

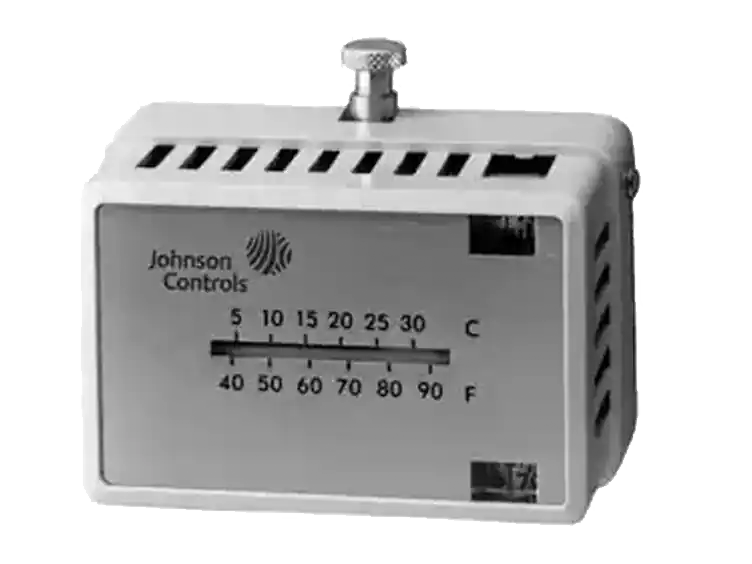

The T-4516 Thermostat is a high volume output, dual temperature, dual dial thermostat. The T-4516 provides individual day and night control, or weekend setback.

• Available in Direct Acting (DIR) model
• Additional output air terminal which can be used as an on-off switchline pressure
• Includes Fahrenheit dial
• Available in vertical or horizontal model
• Provided with an optional manual indexing switch that permits you to restore the day temperature of the individual thermostat without affecting the other system thermostats. Indexing switch can be unlatched manually or will automatically reset with the day cycle
• Sensitivity Adjustable from .75 to 4.0 psig/°F (9 to 50 kPa/°C)
• Factory set at approximately 2.5 psig/°F (32 kPa/°C)
• Flow Capacity 400 SCIM (107 mL/s)
• Air Consumption 20 SCIM (5 mL/s)
• Supply Pressure 13 to 25 psig (91 to 175 kPa) Nominal Day 15 psig (105 kPa), Switchline Pressure 0 psig Nominal Night 20 psig (140 kPa), Switchline Pressure 20 psig
• Dial Range 5 to 30°C (Two Dials)
• Air Connections Three (Supply, Output and Switchline

The T-4506 Thermostat is a high volume output, dual temperature, dual dial thermostat. The T-4506 provides individual day and night, or two set point temperature control.

• Available in Direct Acting (DIR) and Reverse Acting (REV) models
• Includes Fahrenheit dial
• Direct acting available in vertical or horizontal model
• Reverse acting available in horizontal model
• Available with optional manual indexing switch that permits you to restore the day temperature of the individual thermostat without affecting the other system thermostats
• Indexing switch can be unlatched manually or will automatically reset with the day cycle
• Sensitivity Adjustable from .75 to 4.0 psig/°F (9 to 50 kPa/°C)
• Factory set at approximately 2.5 psig/°F (32 kPa/°C)
• Flow Capacity 400 SCIM (107 mL/s)
• Air Consumption 20 SCIM (5 mL/s)
• Supply Pressure 13 to 25 psig (91 to 175 kPa) Nominal Day 15 psig (105 kPa) Nominal Night 20 psig (140 kPa)
• Dial Range 5 to 30°C (Two Dials)
• Air Connections Two (Supply and Output)

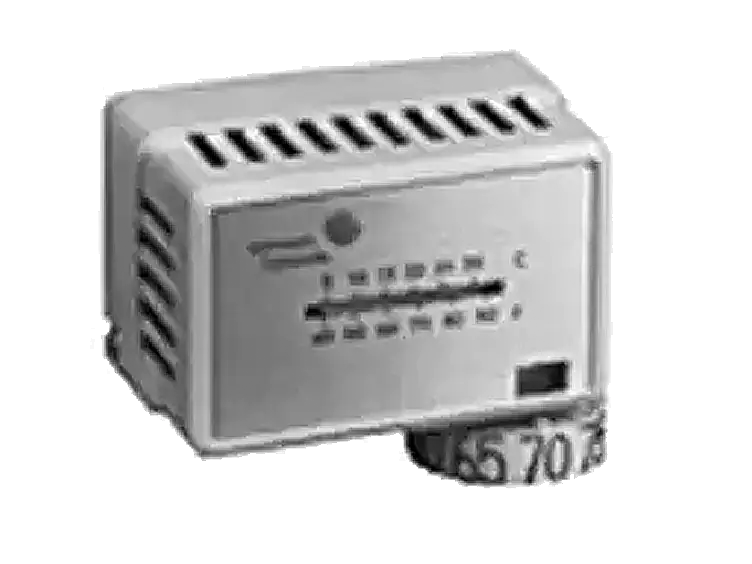

The T-4054 Heating-Cooling, Energy Manager Thermostat is a high volume output, with an adjustable deadband of 0 to 30°F (0 to 16°C) between heating and cooling set points.

• Available in Direct Acting (DIR) and Reverse Acting (REV) models
• Includes Fahrenheit dial
• Mounts in vertical or horizontal position
• Sensitivity Adjustable from 12 to 38 kPa/°C
• Factory set at approximately 32 kPa/°C
• Flow Capacity 400 SCIM (107 mL/s)
• Air Consumption 38 SCIM (10 mL/s)
• Supply Pressure 13 to 25 psig (91 to 175 kPa) Nominal 20 psig (140 kPa)
• Dial Range 5 to 30°C (Two Dials)
• Air Connections Two (Supply and Output)
• Deadband Adjustable Deadband between 5 and 12 psig (35 to 84 kPa)

The T-4600 Thermostat is a low volume output, energy managing, heating-cooling thermostat. The independent setpoints can result in a deadband to encourage energy conservation by eliminating heating and cooling overlap.

• Available in Dual Direct / Dual Reverse / Direct and Reverse models
• Mounts vertically
• Available in Fahrenheit or Celsius models
• Two outputs
• Adjustable sensitivities
• Adjustable set points
• Sensitivity Adjustable from 12 to 38 kPa/°C
• Factory set at approximately 32 kPa/°C
• Flow Capacity 45 SCIM (12 mL/s) with .007 in. Restrictor 25 SCIM (7 mL/s) with .005 in. Restrictor
• Air Consumption 50 SCIM (14 mL/s) or 90 SCIM (24 mL/s) depending on Restrictor
• Supply Pressure 13 to 25 psig (91 to 175 kPa)
• Nominal 20 psig (140 kPa)
• Dial Range 12 to 28°C
• Air Connections Two Restricted Supply/Output for Heating and Cooling

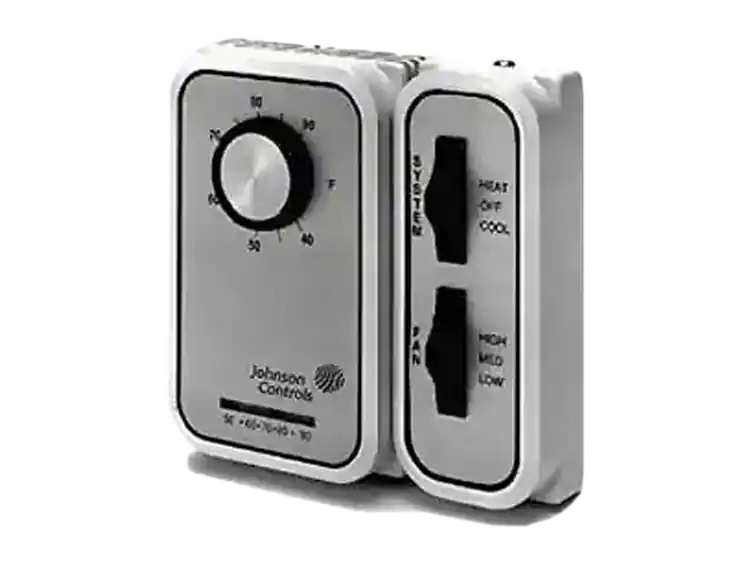

The T46 Series Thermostat is used to control line voltage, fan coil, and heating zone valves on heating, cooling, and combination heating and cooling systems.

• Knob or concealed setpoint adjustment
• Low and high temperature dial stops that are concealed and adjustable throughout setpoint range
• Can be set for a locked dial
• Narrow differential without the need for anticipator
• Standard internal dual Celsius and Fahrenheit scales
• Switch mechanism and wiring connections go into the switch box to isolate electrical circuits from the sensing element
• Mounts on a standard double outlet box
• Separable mounting plate allows easy mounting and wiring without removing thermostat cover
• Locking cover reduces unauthorized tampering
• High-impact plastic enclosure
• Smooth action multi-position slide switches for dependable service

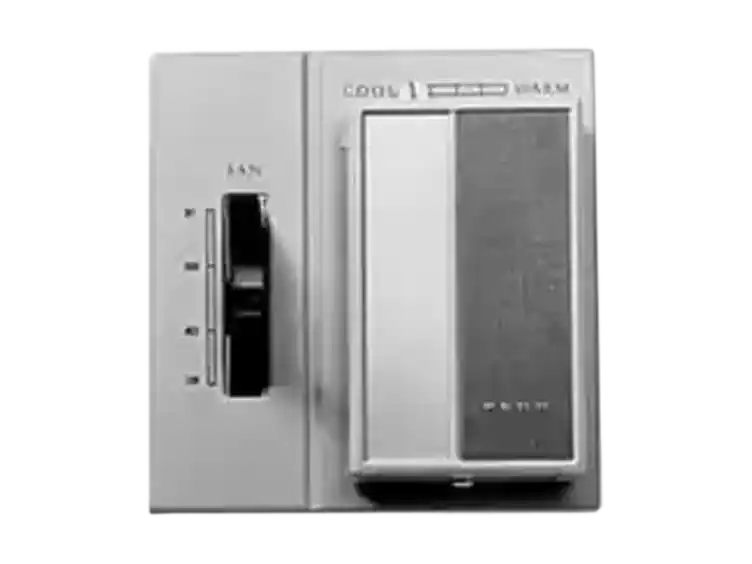

This thermostat controls light duty line voltage fan coil or baseboard valves on heating, cooling, and heating-cooling systems. The thermostat can control one or two valves directly.

• Use for line voltage control of heating and cooling equipment.
• Mounts on a standard, double outlet box.
• Precision, snap-acting contacts.
• Heating and cooling anticipation.
• Cooling and heating-cooling models have an interlocked fan off position.
• Nominal operating differential at 0.3 C° heating, 0.6 C° cooling on standard 120 VAC fan coil valves.

The T-4756 Thermostat is a high volume output, dual-temperature, dual-dial, heating cooling thermostat.

• Available in vertical or horizontal model
• Sensitivity Adjustable from 9 to 50 kPa/°C
• Factory set at approximately 32 kPa/°C
• Flow Capacity 400 SCIM (107 mL/s)
• Air Consumption 20 SCIM (5 mL/s)
• Supply Pressure 13 to 25 psig (91 to 175 kPa) 15 psig (105 kPa) 20 psig (140 kPa)
• Dial Range 5 to 30°C (Two Dials)
• Air Connections Two (Supply and Output)
• Special Feature Dual Dials, separate set point adjustments

The T-4752 Thermostat is a high volume output, heating-cooling thermostat. Provides automatic changeover between Direct Acting (DIR) and Reverse Acting (REV) when supply pressure changes from 15 to 20 psig (105 to 40 kPa).

• Available in vertical or horizontal model
• Sensitivity Adjustable from 9 to 50 kPa/°C
• Factory set at approximately 32 kPa/°C
• Flow Capacity 400 SCIM (107 mL/s)
• Air Consumption 20 SCIM (5 mL/s)
• Supply Pressure 13 to 25 psig (91 to 175 kPa) Nominal Day 15 psig (105 kPa), Nominal Night 20 psig (140 kPa),
• Dial Range 5 to 30°C (Two Dials)
• Air Connections Two (Supply, and Output)
• Special Features Single dial adjusts both set points

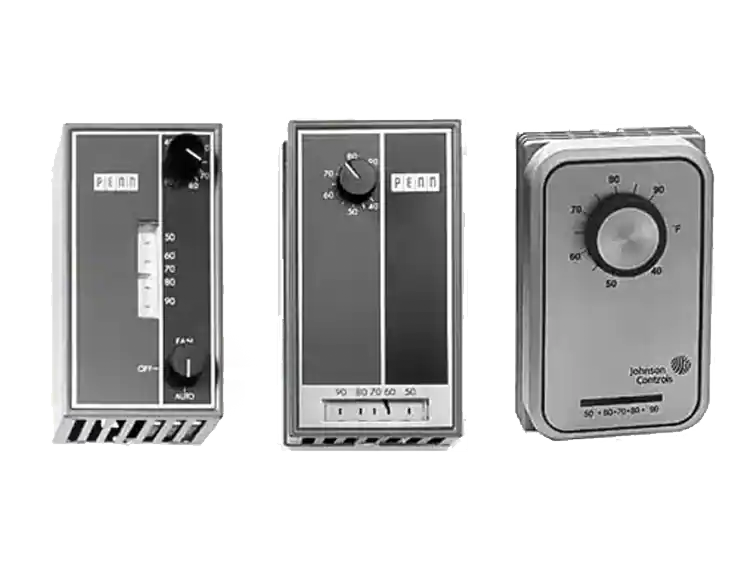

For line voltage control of residential, commercial, or industrial heating or year-round air conditioning. Heat or cold anticipators are not required.

• Use for line voltage control of heating and cooling equipment.
• Temperature range is 5 to 30°C, except energy conservation models
• Attractive beige coloured, high-impact plastic enclosure (T26 Series)
• Close differential without the need for anticipators
• Bi-metal thermometer supplied as standard except where indicated
• Equipped with adjustable dial stops (T26 Series)

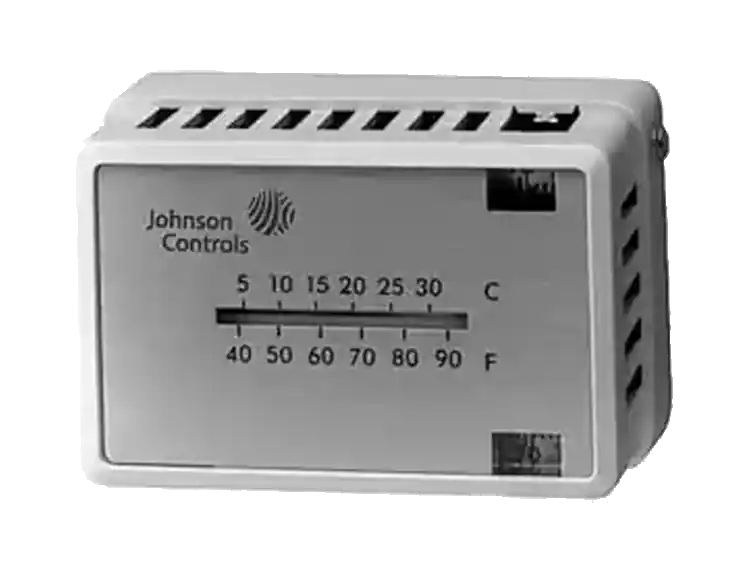

This range of thermostats is available either direct or reverse acting and in either horizontally or vertically mounted variants.

• Sensitivity Adjustable from 9 to 50 kPa/°C
• Factory set at approximately 32 kPa/°C
• Flow Capacity 400 SCIM (107 mL/s)
• Air Consumption 20 SCIM (5 mL/s)
• Supply Pressure 13 to 25 psig (91 to 175 kPa) Nominal 20 psig (140 kPa)
• Dial Range 5 to 30°C
• Air Connections Two (Supply and Output)

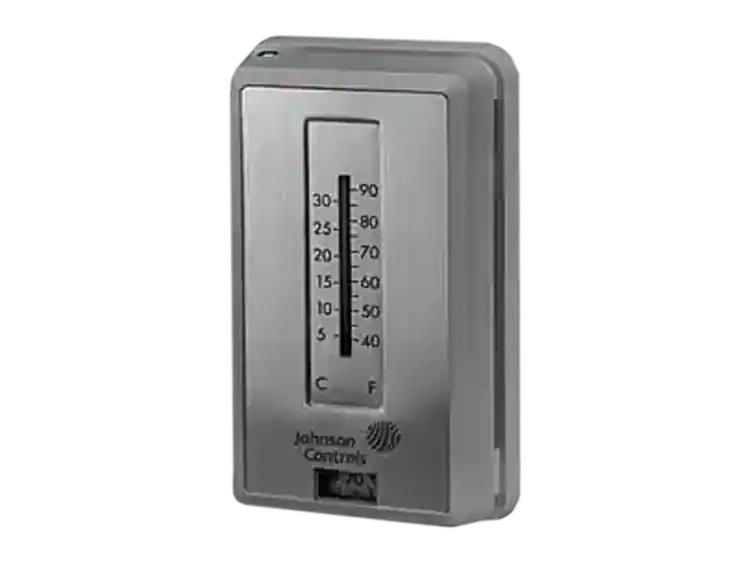

The T-4100 Thermostat is a low volume output, single temperature thermostat.

• Mounts vertically
• Provided with exposed or concealed set point adjustment
• Available as Direct Acting (DIR) or Reverse Acting (REV) model
• Includes standard Fahrenheit and Celsius thermometer
• Requires only one air connection with the use of a remote restrictor
• Sensitivity Adjustable from 12 to 38 kPa/°C
• Factory set at approximately 32 kPa/°C
• Flow Capacity 45 SCIM (12 mL/s) with .007 in. Restrictor 25 SCIM (7 mL/s) with .005 in. Restrictor
• Air Consumption 45 SCIM (12 mL/s) or 25 SCIM (7 mL/s) depending on Restrictor
• Supply Pressure 13 to 25 psig (91 to 175 kPa) nominal 20 psig (140 kPa)
• Dial Range 12 to 28°C
• Air Connections One Restricted Supply/Output

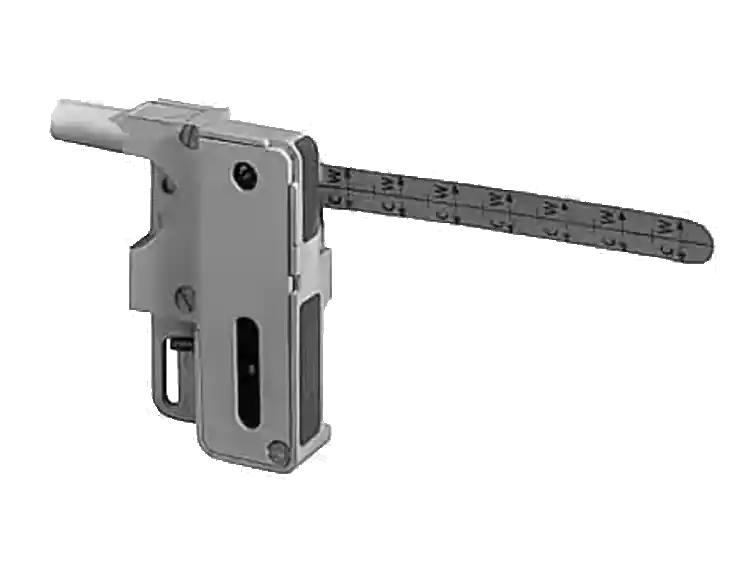

The T-4110 Thermostat is a low volume output, single-temperature thermostat designed for mounting in ceiling terminal units.

• Mounts in Room air sampling chamber, Return air grille, or Diffuser, when equipped with an optional protective cover which incorporates an aspirator to power the thermostat from duct air pressure
• Available as Direct Acting (DIR) or Reverse Acting (REV) models
• Features a long, flexible, plastic lever connected to its set point adjuster, which extends through the ceiling or diffuser, allowing adjustment from inside a room
• Sensitivity Adjustable from 12 to 38 kPa/°C
• Factory set at approximately 32 kPa/°C
• Flow Capacity 45 SCIM (12 mL/s) with .007 in. Restrictor 25 SCIM (7 mL/s) with .005 in. Restrictor
• Air Consumption 45 SCIM (12 mL/s) or 25 SCIM (7 mL/s) depending on Restrictor
• Supply Pressure 13 to 25 psig (91 to 175 kPa) nominal 20 psig (140 kPa)
• Flexible Set Point Lever Range 19 to 28°C
• Air Connections Two, Control and Aspirator

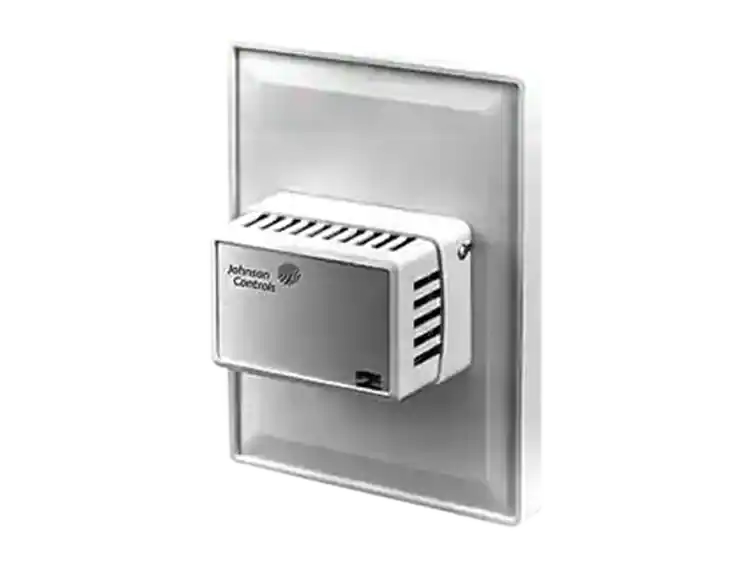

The T-4002-30x Thermostat with Cover and Two-Pipe Conversion Kits feature a T-4002-201 (D.A.) or a T-4002-202 (R.A.) Thermostat. The kits also contain a white or beige cover and cover plate, a selection of faceplates, and all other necessary parts and mounting hardware required to convert a wide array of two pipe competitors’ thermostats.

• White or Beige Cover
• Terminal Connector and TubingTube Couplings and Clamps
• Installation Instructions
• Faceplates (horizontal w/window, horizontal w/logo, vertical w/logo, and blank)
• Cover Plate/Subplate
• Adjustable Pipehead
• Mounting Hardware

The T-4003 Submaster Thermostat is a high volume proportional thermostat. The T-4003 can be reset from a remote location, or in accordance with a referenced temperature variation.

• Available in Direct Acting (DIR) and Reverse Acting (REV) models
• Available in horizontal model only
• Sensitivity Fixed at approximately 32 kPa/°C
• Remote Reset Adjustable from 1.8 to 30°C/kPa
• Flow Capacity 400 SCIM (107 mL/s)
• Air Consumption 20 SCIM (5 mL/s)
• Supply Pressure 13 to 25 psig (91 to 175 kPa), Nominal 20 psig (140 kPa)
• Master Pressure Variable Input 0 to 20 psig (0 to 140 kPa)
• Dial Range 5 to 30°C
• Air Connections Three (Supply, Output, Remote Reset Input)
