Valves and Actuators to Fit Your Application Needs
Our HVAC control valves and actuators deliver consistent, reliable, and accurate flow rates regardless of pressure fluctuations that are inherent in any dynamic system. Consistent designs and convenient built-in operating features provide outstanding control—without requiring field add-ons.
Easy Installation
Retrofit actuators in any application, regardless of ball valve brand.
Simplified Sizing
Select based on GPM requirements, not Cv calculations.
Flow Done Right
Valves deliver the correct flow regardless of pressure fluctuations.
Valves
Ball Valves
Designed to regulate the flow of water and steam in response to the demand of a controller in HVAC systems.
- Stainless Steel ball and stem assembly
- Maintenance-free design
- 200,000 cycles in iron-oxide contaminated water
Butterfly Valves
Industrial-grade and engineered for a wide range of HVAC applications.
- High-integrity components
- Compatible with all types of ANSI 125/150 slip-on flanges
- Bubble-tight shutoff conserves energy and accurately controls zone temperature for comfort
Globe Valves
VG7000 series valves with VA-715x series actuators.
- Controls the flow of hot/chilled water, and steam
- Valve body static pressure rating: ANSI Class 250
- Magnetic clutch protects gearing and ensures tight close off
Piping Packaging
Designed to simplify the deployment of control valve solutions to a job site.
- Provides defect-free solutions for both two-way and three-way applications
- Ensure leak-free control valve solutions
- Reduces site labor
Pressure Independent Control Valves
Uniquely designed to eliminate the need for separate balancing valves.
- Axial and rotary valve styles
- Factory-mounted electric actuators available
- Automatic system balancing that maximizes performance
Zone Valves
Provides economical and accurate control of hot or chilled water HVAC applications
- Choice of end connections provides increased versatility and replacement capability
- Available in 1/2", 3/4", and 1" line sizes
- Sweat, NPT, or inverted types
Actuators
Fail Safe Actuators
A complete line of fail-safe actuators for HVAC damper and valve applications.
- Direct coupled design needs no crankarm or linkage
- Electric stall detection protects from overload at all angles of rotation
- Complete torque range for HVAC fail-safe applications

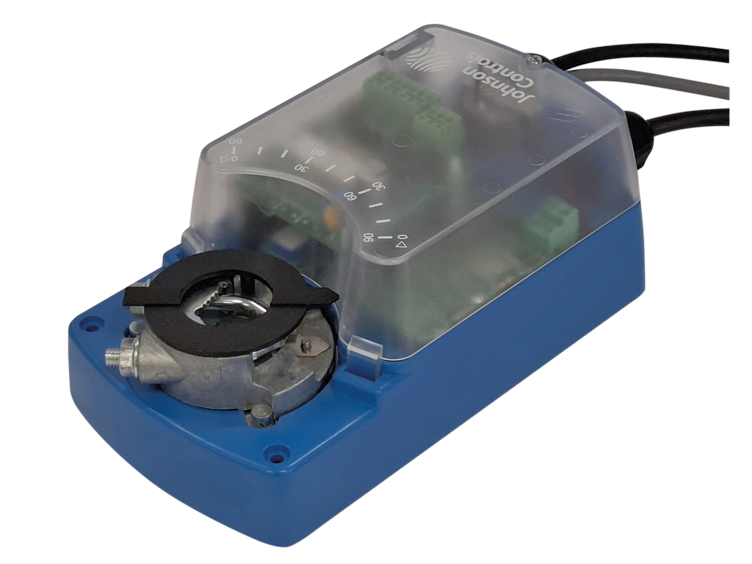

Non-fail Safe Actuators
Non-spring Return Actuators for ease of installation and setup.
- Automatic input signal detection
- Automatic one-button calibration
- IP54 rated enclosure

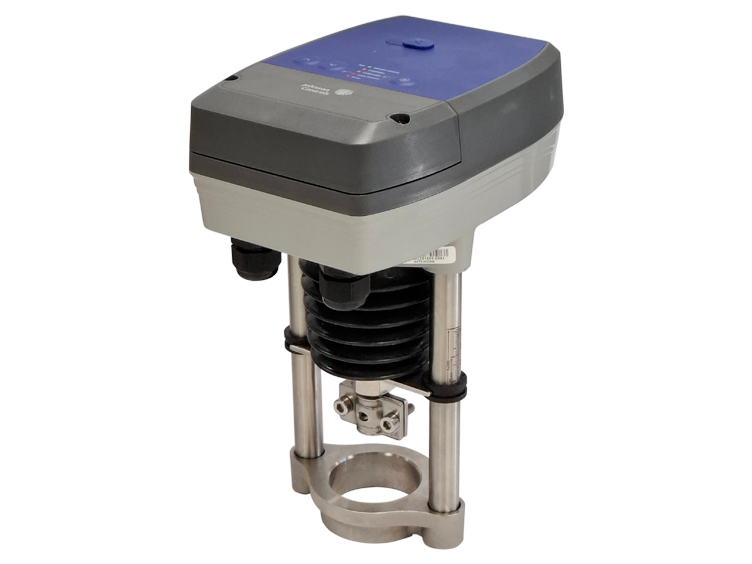

Linear Actuators
Spring return electric actuators to accurately position control valves in HVAC applications.
- Allows for universal application
- Automatic spring return
- Reduces installation time and cost
Pneumatic Actuators
Complete coverage for HVAC valve and damper applications in pneumatic control systems.
- Telescoping linkages for quick installation
- Wide spring ranges available to accommodate a range of pneumatic system pressures
- Models available for hot-water, chilled water and steam applications
Weather Proof Actuators
Cost-effective and durable weather shield designed to provide a degree of protection.
- Fully enclosed design protects from corrosion, rain, freezing rain, sleet, and snow
- Extends service life by preventing water or moisture from entering the unit and damaging actuator
- Impact-grade enclosure provides impact resistance
Contact us to discuss your HVAC Controls requirements with one of our experts
