Marine-Approved Control Panels

Control Panels

Why Choose Our Control Panels?

Our fire alarm control panels are the heart of a robust and scalable fire and life-safety communications system. Intelligent, configurable, and expandable, they can meet a wide range of customer and vessel needs.

Intelligent

Next-generation technology that’s robust and cost-effective.

Flexible

Easy to install, configure, and expand.

Intuitive

A variety of programming options for fast setup and maintenance.

Click here to see the Johnson Controls Oil, Gas and Marine LinkedIn feed

Addressable

Our addressable control panels can pinpoint the source of a fire, alert, trouble, or other system event while offering a modular design and an intuitive interface—features that make them easier to install, more reliable, and easier to manage and maintain.

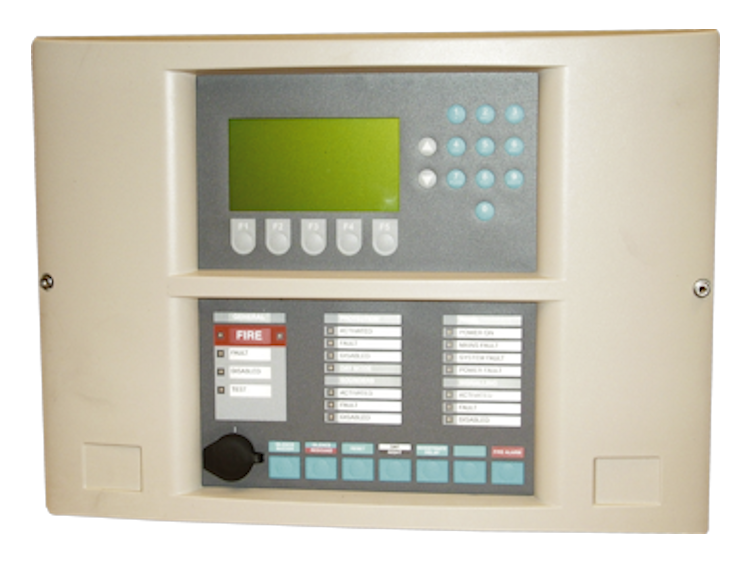

ZETTLER T2000 Marine Fire Detection Control Panel

T2000 Marine Approved Addressable Control Panels

The T2000 is a fully Marine approved EN54 compliant 1 to 8 loop networkable detection panel.

IEC 61508 Approved (SIL2)
Operator control module provides all mandatory operator control keys and LED functions including Day/Night switching
5A 24V DC battery backed power supply and loop booster to EN54pt4
Supports two MZX DIGITAL detection loops (Expandable to eight loops supporting up to 1000 addressable devices)
32 bit processor and memory card
Optional network card and additional loop card(s)
VDR (Voyage Data Recorder) Interface as standard

Conventional Control Panels

Our conventional fire alarm control panels are easy to install, configurable, cost-effective, and satisfy a variety of marine applications.

ZETTLER T1200-C Marine Conventional Control Panel

ZETTLER T1200 and T1200-C Conventional Control Panels

A range of user-friendly conventional fire detection panels:

Console or bulkhead mountable
Compact repeater available
Serial voyage data recorder interface as standard
Increased configuration options to meet a wide range of Class Society requirements
Separate battery box
Multiple power supply options (new mains switching hardware)
Lloyds approved water-mist functionality

ZETTLER MZX-e Extinguishing Control Panel

ZETTLER MZX-e Conventional Extinguishing Control Panels

A range of user-friendly conventional fire detection panels.

Approved to EN 12094-1:2003
Approved to EN 54-2 and 4
Approved to the Construction Product Directive (CPD)
Comprehensive facilities for gaseous extinguishing systems
Monitored inputs for gas discharged, gas low, isolation valve closed/abnormal, gas trapped in manifold
Control inputs for auto/manual, gas hold, gas abort

Fire, Safety & Damage Control Systems

With experience that can be traced as far back as 1852 and one of the world’s largest portfolios of marine fire, safety and asset integrity solutions, Johnson Controls is a leader in meeting safety and security challenges for the Naval Marine market.

Learn More

Please contact us to discuss your requirements with one of our specialists
